ADJUSTMENT DEVICES

FOR SERVICE AND COMMISSIONING

Adjustment devices for the service and commissioning of VAV terminal units. To display current values and parameters and for functional testing.

  • Display of actual and setpoint values
  • Display and changing of parameters and operating modes
  • Simple connection to the service socket of the controller or to a terminal in theswitch cabinet
  • Easy operation
  • Portable devices for use on site

General information

Application

  • Adjustment devices for VAV terminal units, used to facilitate service and commissioning
  • Read actual values and setpoint values
  • Read and change parameters
  • Read and set operating modes
  • Functional test
  • Setting of communication parameters for bus-compatible control components



Parts and characteristics

  • Adjustment device
  • Connecting cable


Commissioning

  • To operate the adjustment device, the voltage is typicallysupplied from the control components
  • Certain models also enable battery operation


Order code

Order code

  • ORDER CODE
AT–VAV–B
| |
1 2

1 Type
AT-VAV Adjustment devices for VAV terminal units

2 Variants
B ZTH-EU for TROX/Belimo volume flow controllers

G GUIV2-A for TROX/Gruner volume flow controllers

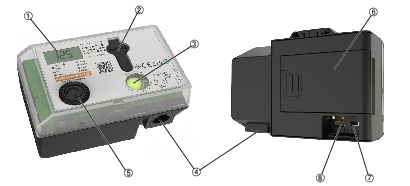

G3 GUIV3-M for volume flow controller TROX TVE
S AST20 for Siemens volume flow controllers

Order example: AT-VAV-S

Variants

  • VARIANTS

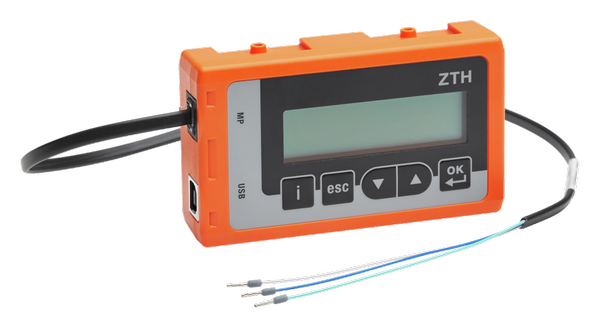

Adjustment device ZTH for product variant AT-VAV-B

① Display
② OK – confirm selected value
③ Push button – increase value
④ Push button – decrease value
⑤ ESC – cancel / back
⑥ i – display additional information
⑦ USB socket for PC communication
⑧ MP connecting socket for controller communication with ZK1-GEN, ZK2-GEN


Downloads

product information

  • Product data sheet Type Adjustment devices

    Adjustment-devices_PD_2019_11_DE_en Product data sheet 41 MB pdf

operation manuals

  • Operation manual Type Adjustment devices - AT-VAV-S (AST20)

    Operation manual  650 KB pdf

  • Operation manual Type Adjustment devices

    Operation manual 1,4 MB pdf

  •  Operation manual Type Adjustment devices - AT-VAV-B (ZTH-EU)

    Operation manual 4,3 MB pdf
