A*, D* – Ventilation grille

Attachments for ventilation grilles, made of sheet steel, for volume flow rate balancing and air direction control

Attachments with manually adjustable blades

  • Volume flow rate balancing
  • Air direction control
  • Hit and miss damper with airflow straighteners

Application

Application

  • Attachments for ventilation grilles offer additional functions
  • For volume flow rate balancing and/or for air direction control
  • Damper units simplify the volume flow rate balancing required for commissioning, for supply air and extract air
  • Air control blades, which are fitted at 90° to the front blades, allow for other airflow directions, for supply air
  • Ventilation grille need not be removed for adjustment

Description

Variants

  • AG: Damper unit with opposed action blades
  • AS: Hit and miss damper
  • D: Air direction control
  • DG: Damper unit with opposed action blades and blades for air direction control

Maintenance

  • Maintenance-free as construction and materials are not subject to wear
  • Inspection and cleaning to VDI 6022

Technical information

Function

  • Function

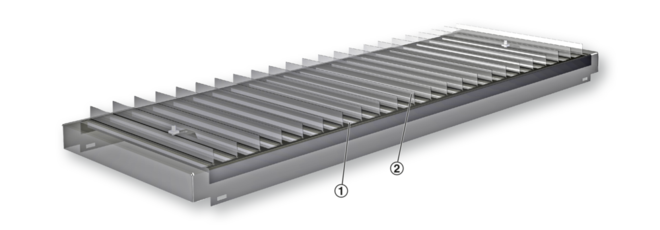

Schematic illustration of -AG
00205167_0

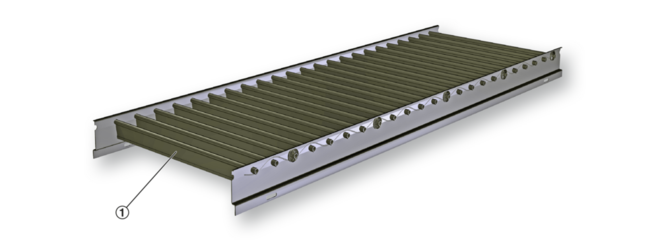

① Blade for flow adjustment


00205167_0
00205179_0
00126213_0.
00117606_0.

Variants, Dimensions and weight

  • Variants
  • Dimensions and weight
AG
00145346_0


00145346_0
00145356_0
00145381_0
00145391_0

Any attachments are to be defined with the order code of the ventilation grille.

-AG

Application

  • For volume flow rate balancing
  • Damper units simplify the volume flow rate balancing required for commissioning, for supply air and extract air
  • Ventilation grille need not be removed for adjustment

Parts and characteristics

  • Opposed action blades
  • Can be adjusted and set with screws

-AS

Application

  • For volume flow rate balancing
  • Damper units simplify the volume flow rate balancing required for commissioning, preferably for extract air
  • Ventilation grille need not be removed for adjustment

Parts and characteristics

  • Hit and miss damper elements with airflow straighteners
  • Can be adjusted and set with screws

-D

Application

  • For air direction control, for supply air
  • Air control blades, which are fitted at 90° to the front blades, allow for other airflow directions
  • Ventilation grille need not be removed for adjustment

Parts and characteristics

  • Individually adjustable blades

-DG

Application

  • For volume flow rate balancing and additionally for air direction control, for supply air
  • Damper units simplify the volume flow rate balancing required for commissioning
  • Air control blades, which are fitted at 90° to the front blades, allow for other airflow directions
  • Ventilation grille need not be removed for adjustment

Parts and characteristics

  • Volume flow rate balancing: opposed action blades
  • Air direction control: adjustable air control blades
  • Can be adjusted and set with screws

Attachments for ventilation grilles

Type of ventilation grille Attachment
Type of ventilation grille -AG -AS -D -DG
Type of ventilation grille Damper unit Hit and miss damper Air direction control Damper unit Air direction control

Installation into walls, sills or rectangular ducts





X-GRILLE Cover

●

●

●

●

X-GRILLE Basic

●

●

●

●

ASL

●

●

●

●

AT

●

●

●

●

VAT

●

●

●

●

AH

●

●

●

AWT

●

●

●

SL

●

●

●

●

TR

●

●

●

●

TRS

●

●

●

●


-AG
00190908_0
L Nominal length
H Nominal height


00190908_0
00204927_0
00204945_0
00204933_0

The weight table shows the available nominal sizes

-AG

H L [mm]
H 225 325 425 525 625 825 1025 1225
H m
mm kg

75

0.4

0.5

0.7

0.8

1.0

1.3

1.6

1.9

125

0.5

0.6

0.8

1.0

1.2

1.5

1.9

2.3

225

0.7

0.9

1.1

1.4

1.6

2.1

2.5

3.0

325

1.2

1.4

1.7

2.0

2.6

3.2

3.8

425



2.5

3.2

3.9

4.6

525





4.5

5.3


-AS

H L [mm]
H 225 325 425 525 625 825 1025 1225
H m
mm kg

75

0.3

0.4

0.5

0.6

0.7

0.9

1.1

1.3

125

0.4

0.6

0.8

0.9

1.1

1.4

1.8

2.1

225

0.8

1.0

1.3

1.6

1.9

2.5

3.0

3.6

325

1.5

1.9

2.3

2.7

3.5

4.3

5.1

425



3.8

4.9

6.0

7.2

525





7.3

8.7


-D

H L [mm]
H 225 325 425 525 625 825 1025 1225
H m
mm kg

75

0.2

0.3

0.4

0.4

0.5

0.7

0.9

1.0

125

0.3

0.4

0.5

0.6

0.7

0.9

1.2

1.4

225

0.4

0.6

0.7

0.9

1.0

1.4

1.7

2.0

325

0.7

0.9

1.2

1.4

1.8

2.2

2.7

425



1.7

2.3

2.8

3.3

525





3.3

4.0


-DG

H L [mm]
H 225 325 425 525 625 825 1025 1225
H m
mm kg

75

0.4

0.6

0.8

0.9

1.1

1.5

1.8

2.1

125

0.6

0.8

1.0

1.2

1.5

1.9

2.4

2.8

225

0.8

1.2

1.5

1.8

2.2

2.8

3.5

4.1

325

1.6

2.0

2.4

2.9

3.7

4.6

5.5

425



3.6

4.6

5.7

6.8

525





6.8

8.1


Commissioning

  • Commissioning
Volume flow rate balancing -*G
00152008_0

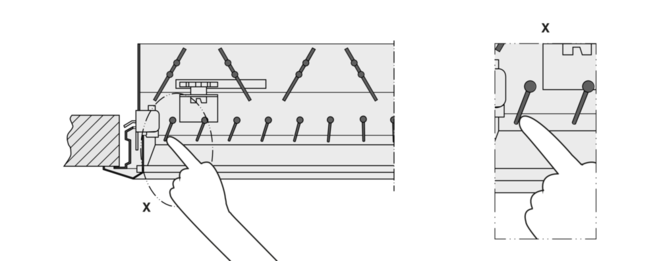

Attachments -AG, -DG and Types AGW, DGW

00152008_0
00152134_0
00173501_0

Volume flow rate balancing

When several ventilation grilles are installed on the same duct, it may be necessary to balance the volume flow rates.

  • AG: Damper unit with opposed action blades, adjustable, secured with a locking screw
  • AS: Damper unit with hit and miss damper, adjustable, secured with a locking screw

Air pattern

  • Adjustable blades: Set the air control blades individually or together and depending on the local conditions
  • D, DG: Air control blades, fitted at 90° to the front blades, can be adapted to the local conditions

Downloads

product information

  • Product data sheet Type -AG, -AS, -D, -DG

    Product data sheet 2,1 MB pdf

operation manuals

  • Installation manual Lüftungsgitter

    Installation manual 1,2 MB pdf
