RM-O-VS-D

Duct smoke detector RM-O-VS-D

RM-O-VS-D

For smoke detection in ducts with integrated airflow monitoring

Duct smoke detector with airflow monitoring function to prevent smoke from spreading through the ducts of ventilation and air conditioning systems

To provide the control input signal for fire dampers
To provide the control input signal for smoke protection dampers
For airflow velocities up to 20 m/s
For any airflow direction
Contamination level indicator
Automatic adjustment of the alarm threshold, hence long service life and little requirement for maintenance
Volt-free signal and alarm relays
Airflow monitor

Optional equipment and accessories

Integration into the central BMS with TROXNETCOM

Application

Application

Duct smoke detectors of Type RM-O-VS-D are used to control fire dampers and smoke protection dampers with electric or electric-pneumatic release mechanisms (power off to close)
Control of smoke protection dampers with electric spring return actuators
Used to prevent smoke from spreading through the ducts of ventilation and air conditioning systems
Integration into the central BMS with TROXNETCOM

Special characteristics

Smoke detection based on the principle of light scattering
For airflow velocities from 1 to 20 m/s
Airflow monitoring
With volt-free signal and alarm relays
Integral signal lamps
Choice of four airflow directions (every 90°)
Easily removable sensor head (simplifies functional testing)
Contamination level indicator and automatic adjustment of the alarm threshold, hence long service life
Airflow monitoring unit (warning threshold < 2 m/s)
Annual maintenance
Can be used with products of any make or model

Classification

Building inspectorate licence Z-78.6-67 from the DIBt, Berlin, Germany

Description

Variants

RM-O-VS-D: Duct smoke detector

Parts and characteristics

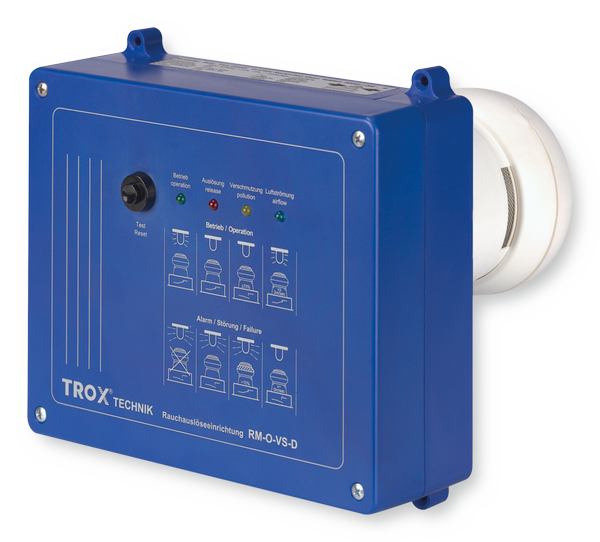

Duct smoke detectors with power supply unit, sensor electronics, sensor head and airflow monitor
Reset/Test push button
Signal lamp, green – operation (system monitoring)
Signal lamp, red – release (alarm)
Signal lamp, yellow – pollution (indicates contamination)
Signal lamp, blue – airflow (airflow monitoring)
Hinged cover
4 cover screws

Materials and surfaces

Plastic casing

Standards and guidelines

Building inspectorate licence Z-78.6-67 from the DIBt, Berlin, Germany
Guideline regarding fire protection requirements on ventilation systems (Lüftungsanlagen-Richtlinie, LüAR)

Maintenance

The functional reliability of the duct smoke detector must be tested at least every 12 months; this has to be arranged by the owner of the ventilation system; functional tests must be carried out in compliance with the basic maintenance principles stated in EN 13306 and DIN 31051.
Duct smoke detectors must be included in the regular cleaning schedule of the ventilation system
For details on maintenance and inspection refer to the installation and operating manual

Technical information

Functional description

A functional test should be carried out before commissioning, then once per year and after any modification, e.g. repair.

Without smoke

Press Reset/Test push button on the duct smoke detector or in the engineering room (option). The voltage supply to the smoke detector which is attached to the fire damper or smoke protection damper is interrupted, and the damper closes as a consequence.

Once the push button has been released, the damper OPENS, either due to a spring return actuator or a pneumatic actuator.

Note: Fire dampers whose release mechanism includes electromagnets can be opened manually.

With smoke

Spray test gas into the duct through an opening right before the duct smoke detector

If the threshold value is exceeded, the voltage supply to the duct smoke detector which is attached

to the fire damper or smoke protection damper is interrupted, and the damper closes as a consequence.

To re-open the damper after the sensor head has become free of smoke, press the Test/Reset push button on the duct smoke detector.

Once the push button has been released, the damper OPENS, either due to a spring return actuator or a pneumatic actuator.

Note: Fire dampers whose release mechanism includes electromagnets can be opened manually.

EC conformity	Low voltage to 2006/95/EC, EMC to 2004/108/EC
Supply voltage	230 V AC +10/–15 %, 50/60 Hz
Power rating	6 VA max.
Micro fuse	T 100 L 250 V
Protection level	IP 42
Ambient temperature	0 – 60 °C
Permitted airflow velocity	1 – 20 m/s
Acceptable humidity	≤ 90 % relative humidity, non-condensing
Alarm threshold for volume flow rate	< 2 m/s
Alarm threshold for increased contamination	> 70 %
System monitoring	> 90 %; no smoke detector; smoke detector data transmission error
Alarm relay contact (release, contamination)	250 V 2 A, 24 V DC 100 W
Weight	Approx. 1.5 kg

Duct smoke detector (smoke detection based on the principle of light scattering) to prevent smoke from spreading through the ducts of ventilation and air conditioning systems.

For controlling and releasing fire dampers and smoke protection dampers with general building inspectorate licence and fitted with an electric or electric-pneumatic release mechanism (power off to close).

Special characteristics

Smoke detection based on the principle of light scattering
For airflow velocities from 1 to 20 m/s
Airflow monitoring
With volt-free signal and alarm relays
Integral signal lamps
Choice of four airflow directions (every 90°)
Easily removable sensor head (simplifies functional testing)
Contamination level indicator and automatic adjustment of the alarm threshold, hence long service life
Airflow monitoring unit (warning threshold < 2 m/s)
Annual maintenance
Can be used with products of any make or model

Materials and surfaces

Plastic casing

Technical data

EC conformity: Low voltage to 2006/95/EC, EMC to 2004/108/EC
Supply voltage: 230 V AC +10/–15 %, 50/60 Hz
Power rating: ´max. 6 VA
Micro fuse: T 100 L 250 V
Protection level: IP 42
Ambient temperature: 0 – 60 °C
Airflow velocity: 1 – 20 m/s
Humidity: ≤ 90 % relative humidity, non-condensing
Alarm threshold for volume flow rate: < 2 m/s
Alarm threshold for increased contamination: > 70 %
System monitoring: > 90 %; no smoke detector; smoke detector data transmission error
Alarm relay contact (release, contamination): 250 V 2 A, 24 V DC 100 W
Weight: approx. 1.5 kg

Downloads

product information

Type RM-O-VS-D

K 4 – 3.1 – 1 Technical Leaflet 240 KB pdf

certificates

Type RM-O-VS-D (german version)

32002 Certificate of Accordance 3,2 MB pdf
Type RM-O-VS-D (german version)

Z-78.6-67 Approval 720 KB pdf
