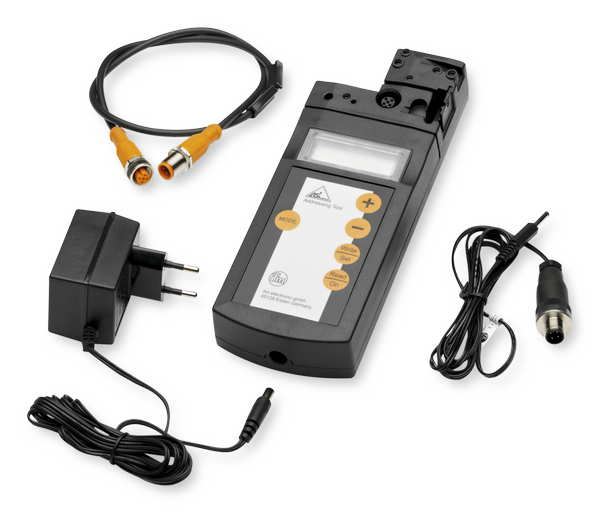

00134639_0
TNC-Z0045
00134639_0

TNC-Z0045

AS-i addressing device for commissioning and diagnosis, easy slave addressing. Compact device with integral universal adapter, including cable.

Compact device for addressing slaves and writing slave parameters

  • Display of all slaves on a bus
  • Reading and writing slave data and slave parameters
  • Reading of safety codes (AS-i Safety at Work)
  • Connection of different modules using a universal adapter

Application

Application

  • TROX AS-i addressing device TNC-Z0045 for the addressing of active AS-i modules and intelligent sensors and actuators
  • Display of all slaves on a bus
  • Reading and writing slave data and slave parameters
  • Compact device, with battery pack

Technical information

  • Function
  • Technology
  • Specification text
  • Order code

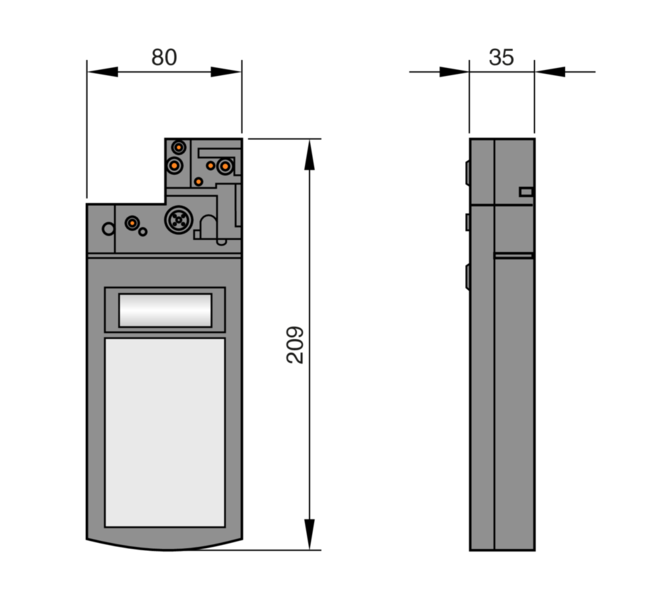

AS-i addressing device TNC-Z0045 00134279_0

DescriptionTNC-Z0045
Keypad5 push buttons, protected by a membrane
DisplayLC display, seven segments
AS-i interfacesM12 and universal adapter
Interfaces, external voltage supplyJack socket, 2.1 mm
ConnectionMin. 1 AS-i slave, max. 62 slaves
Power supplyIntegral battery pack
Operating timeWith fully charged battery pack: approx. 8 h; this equals approx. 250 write/read actions
Charger230 V AC
Charging timeApprox. 12 h
Protection levelIP 20
AccessoriesAddressing plug TNC-70213, addressing cable TNC-11452


Standard description (characteristics)

AS-i addressing device for commissioning and diagnosis, easy slave addressing. Compact device with integral universal adapter, including cable.

00137444_0


 Component
TNC-Z0045 Addressing device
TNC-A1145       AS-i system tester



Downloads

product information

  • Adjustment and addressing devices

    K 4 – 6.2 – 78 Technical Leaflet 520 KB pdf
