TNC-SVR01/TNC-SVR02
00134685_0

TNC-SVR02

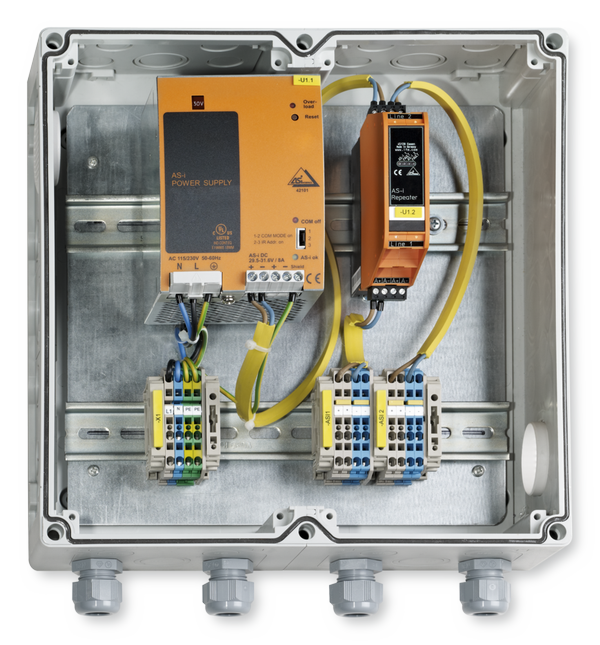

PRE-CONFIGURED AS-I SWITCHBOX FOR REPEATERS TNC-A3226

Pre-configured modular base station with power supply units, relays and controllers, for the rapid implementation and adjustment of control systems

  • Space saving, compact design
  • All components are already wired to rail mount terminals
  • Quick, error free assembly and installation
  • Robust design
  • With TROXNETCOM Basic User Software for rapid and safe commissioning and configuration
  • Integral display, also for operation

Application

Application

  • Pre-configured AS-i base stations for repeaters (TNC-A2226), with an AS-i power supply unit TNC-A1258 = 8 A
  • Installed and wired to rail mount terminals
  • Plastic casing, free of halogens, with transparent cover

  • When a mains 230v AC power supply is connected this unit will create an additional segment and extend the AS-i fieldbus by a further 100m.  Two Repeaters can be connected in series resulting in three segments to create a fieldbus that contains 300m of cable.


Technical information

  • FUNCTION
  • TECHNOLOGY
  • SPECIFICATION TEXT
  • ORDER CODE
AS-i pre-configured switch boxes TNC-SVR01, TNC-SVR02 00134225_0


The TNC-SCR02 incorporates a AS-i repeater and 8 A AS-i power supply. When a mains 230v AC power supply is connected this unit will create an additional segment and extend the AS-i fieldbus by a further 100m.

Two Repeaters can be connected in series resulting in three segments to create a fieldbus that contains 300m of cable.

Downloads

product information

  • TROXNETCOM AS-i Pre-configured switch boxes

    K 4 – 6.2 – 44 Technical Leaflet 600 KB pdf
