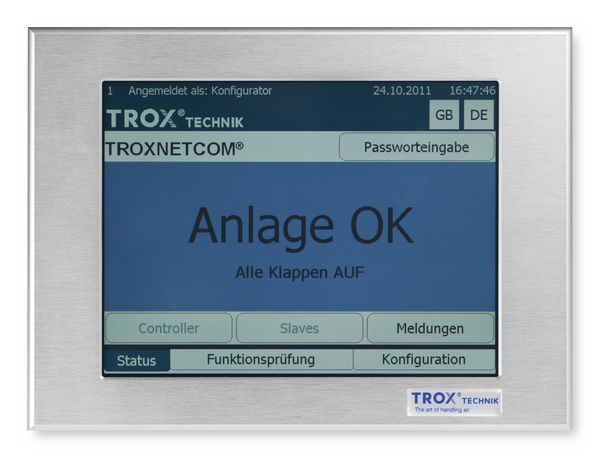

TP104N
00134520_0

TP104N

MMI system for display, operation and as communication master with 10.4" colour display as touch screen

Control and display unit as a master for controlling and operating an entire system

  • With TROXNETCOM Basic User Software for rapid and safe commissioning and configuration
  • Touch display as communication master for 28 controller and power units
  • High-quality touch display in four sizes: 4.3", 5.7", 10.4" and 12.1"
  • Integration with higher-level systems via Modbus or BACnet/ip interface (no additional effort required)
  • For automated function tests including logging
  • Display of all system status values

Application

Application

  • 10.4" MMI system for display and operation, also as communication master for up to 28 AS-i controllers TNC-A1305/06
  • ModBus RTU/TCP and BACnet/IP interfaces for integration with the central BMS
  • With TNC Basic User Software

Technical information

  • Technology
  • Specification text
  • Order code

DescriptionTP104N
DisplayTFT (colour)
OperationTouch screen
Resolution800 × 600 pixels
Display angle vertical/horizontal 110/140°
Display area B × H211 × 158 mm
Diagonal10.4˝
CasingGalvanised sheet steel
Front materialAluminium, anodised (natural colour)
Front B × H × T295 × 220 × 5 mm
Cut-out B × H287 × 212 mm
Installation depth without plug attachedApprox. 56 mm
Protection levelFront IP 65, back IP 20
Total weightApprox. 1900 g
InterfacesRS232, TTY, USB, Ethernet and field bus interface PROFIBUS DP master
Memory1 GB flash, 128 MB flash SDRAM, 1 MB SRAM, battery pack
Temperature range for operation0 to 50 °C
Temperature range for storage–25 to 70 °C
Rel. humidity for operation and storage20 – 85 %, non-condensing
Supply voltage24 V DC (SELV/PELV to EN 61131)
Residual rippleMax. 10 %
Minimum voltage18 V
Maximum voltage30 V
Current consumption (typically 24 V)0.7 A
Current consumption (max.)1.0 A
Power required16.8 W
EMC immunityEN 61000-4-2 to 4-6
VibrationEN 60068-2-6
ShockEN 60068-2-27


Standard description (characteristics)

MMI system for display, operation and as communication master

  • 10.4 " colour display, touch screen
  • Interfaces: ModBus RTU/TCP and BACnet/IP interfaces for integration with the central BMS
  • With Basic User Software for controlling and for the display of all system status values
  • Automatic recognition of TROX modules and their functions
  • Network control
  • Automatic functional test, including documentation
  • Real time clock
  • 4 digital inputs/outputs, interfaces COM2=RS485, COM1=RS232, Ethernet, USB
  • Dimensions of front panel (B × H × T): 295 × 220 × 5 mm
  • Protection level: Front IP 65; back IP 20
  • Supply voltage 24 V DC
  • Make: TROX GmbH or equivalent
  • Typ: TP104N

00133782_0


 Master and display units
TP043N       Display 4.3"
TP057N       Display 5.7"
TP104N       Display 10.4"
TP121N       Display 12.1"



Downloads

product information

  • TROXNETCOM AS-i Master and display units

    K 4 – 6.2 – 21 Technical Leaflet 540 KB pdf
