X-CUBE SCHOOLAIR-V-HE

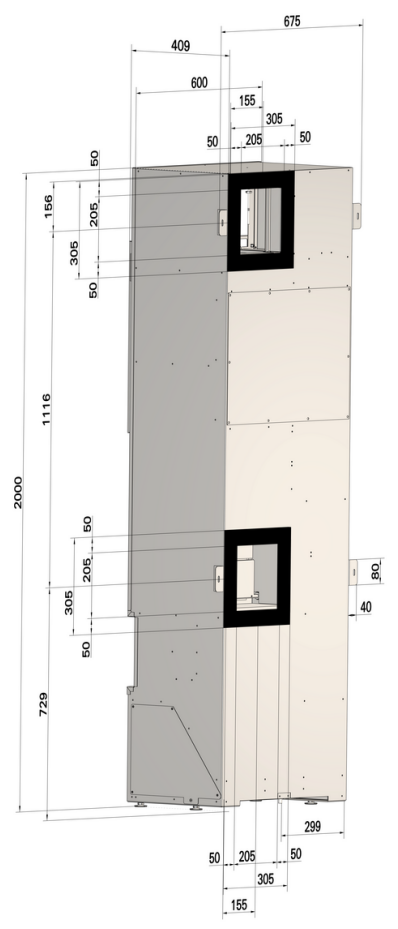

Construction KR (room view)

Tested to VDI 6022

Conforms to VDI 6022

Cross counter flow heat recovery unit

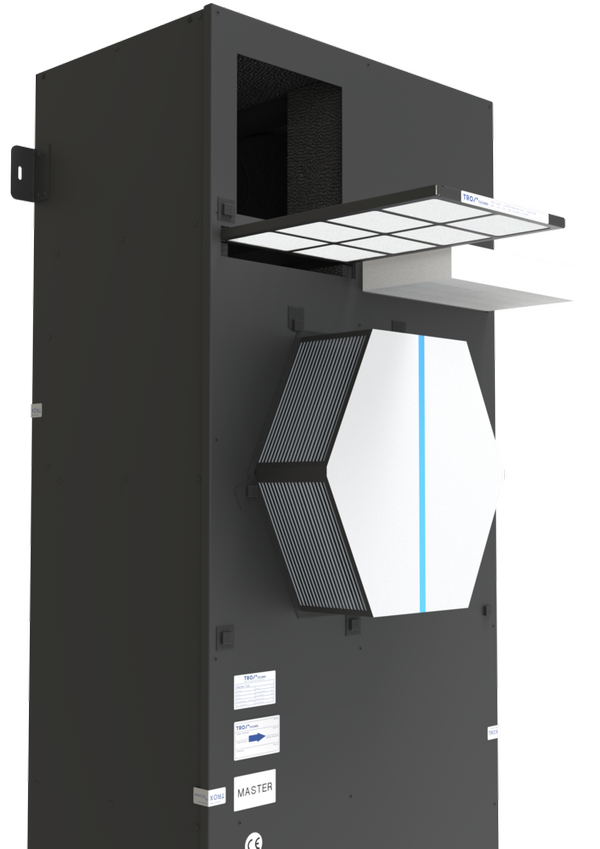

Inspection access to filter and heat recovery unit

Water connections and control system connections

Levelling foot

X-CUBE SCHOOLAIR-V-HE

SUPPLY AND EXTRACT AIR UNIT WITH SWITCHOVER OPTION TO SECONDARY AIR OPERATION, INCLUDING CROSS COUNTER FLOW HEAT RECOVERY UNIT AND HEAT EXCHANGER FOR VERTICAL INSTALLATION ON THE FACADE

Ready-to-operate decentralised ventilation unit for convenient room temperature control and ventilation of rooms such as classrooms, meeting rooms and nurseries

Acoustically optimised EC fans with low specific fan power, acc. to DIN EN 16798-3, SFP = 0
Cross-counterflow heat recovery unit (84% heat recovery efficiency)
Highly efficient heat exchanger for heating and cooling as 2-pipe or 4-pipe system
Heat exchanger connection on the right, when seen from the room
Condensate drip tray with drain (condensate drain must be provided by the client)
Year-round use of the heat recovery system
Reduces fine dust and pollen contamination thanks to integrated air filters in accordance with VDI 6022 - filter class ISO ePM1 65 % and extract air ISO Coarse 65 %
Easy filter change without tools
Motorised shut-off dampers, normally closed

Installation without interruption of school operations

Optional equipment and accessories

Modular control system FSL-CONTROL III, specially for decentralised ventilation systems
Wood panelling in various colours including TROX ventilation grilles for supply and extract air (self-assembly kit)

Technical information

Function, Technical data, Quick sizing, Specification text, Order code

SEH Single room exhaust air
SRO Single room outdoor air
SRS Single room supply air
SET Single room extract air
SEC Single room secondary air

1 Outdoor air temperature sensor (optional)
2 Shut-off damper with actuator (outdoor air and exhaust air)
3 Fine dust filter ePM1 65 %
4 EC fans (supply air and extract air)
5 Recuperative heat exchanger
6 Sound attenuator
7 Heating coil
8 Cooling coil (optional)
9 Supply air temperature sensor (optional)
10 Bypass damper with actuator (modulating)
11 CO2sensor (optional)
12 Extract air filter ISO coarse 55%

Functional description

Decentralised supply and extract air units ventilate the room and cover the cooling and heating load in accordance with the technical data. The outside air is drawn in by an EC centrifugal fan and flows through the motorised shut-off damper and the outdoor air filter. The outdoor air then flows through the crosscounterflow heat recovery unit, which can be switched off in energy-efficient operating situations and to protect the device. Before the supply air flows into the room like displacement air, it is heated or cooled in the heat exchanger if required (optional for 4-pipe units). The extract air first flows through the extract air filter, before it is discharged to the outside as exhaust air, by passing the heat recovery unit, the extract air fan and the motorised shut-off damper. If the indoor air quality is sufficient, the FSL CONTROL III controlsystem switches to energy-efficient secondary air mode by closing the outdoor air dampers. The control system comparesthe room air quality setpoints to the actual values measured bythe CO2sensor and switches automatically between outdoor airand secondary air operation. In case of a power failure, the outdoor air and exhaust air dampers are closed to ensure fire protection, frost protection and to avoid draughts. This is ensured by a capacitor in each actuator. Close to the façade, the supply air is discharged into the room with a medium velocity between 0.5 and 0.8 m/s. Due to the induction effect, the supply air velocity is rapidly reduced so that, in cooling mode, the supply air spreads across the entire floor area as a displacement flow. Near heat sources such as people or equipment, a buoyancy flow is formed by natural convection, so that the air is exchanged primarily in these areas.

Width	600 mm
Height	2000 mm
Depth	408 mm
Volume flow rate	150, 200, 240 m³/h (boost 360 m³/h)
Sound power level	36 – 50 dB(A)
Heat recovery efficiency	84 %
Maximum operating pressure, water side	6 bar
Maximum operating temperature	75 °C
Supply voltage	1~ 230 V AC, ±10 %, 50/60 Hz
Weight	90 kg
Nominal volume flow rate	240 m³/h
Power rating	592 VA

CUBE/SCHOOLAIR-V-HE: Heat exchanger type 1 (design example 2-pipe version - active heating)

Supply air volume flow	m³/h	150	200	240	360
Total heating capacity	W	2510	3370	3940	5260
Room heating capacity	W	695	949	1031	908
Air temperature in the device	°C	-12	-12	-12	-12
Supply air temperature	°C	32.3	32.6	31.4	26.7
Condensate quantity	g/h	0	0	0	0
Hot water volume	l/h	80	135	165	200
Water inlet temperature	°C	50	50	50	50
Water outlet temperature	°C	22.7	28.3	29.2	27.1
Pressure loss, water side	kPa	3.1	7.8	11.1	15.7
Sound power level Lw,a	dB(A)	36	40	43	50
Sound pressure level including 8 dB room attenuation	dB(A)	28	32	35	42
Active power Pel	W	22	32	40	90

Air-side data heating mode:

Temperature/relative humidity outdoor air: -12 °C/90 %

Temperature/relative humidity indoor air: 20 °C/35 %
X-CUBE/SCHOOLAIR-V-HE: Heat exchanger type 3 (design example 2-pipe version - isothermal supply air)

Supply air volume flow	m³/h	150	200	240	360
Total heating capacity	W	360	540	620	810
Room heating capacity	W	85	128	99	-108
Air temperature in the device	°C	15.2	14.6	14.2	13.3
Supply air temperature	°C	21.5	21.7	21.1	19.2
Condensate quantity	g/h	570	729	855	1193
Hot water volume	l/h	30	120	165	200
Water inlet temperature	°C	50	50	50	50
Water outlet temperature	°C	39.7	46.1	46.7	46.5
Pressure loss, water side	kPa	0.7	8.1	14.3	20
Sound power level Lw,a	dB(A)	36	40	43	50
Sound pressure level including 8 dB room attenuation	dB(A)	28	32	35	42
Active power Pel	W	22	32	40	90

Air-side data heating mode:

Temperature/relative humidity outdoor air: -12 °C/90 %

Temperature/relative humidity indoor air: 20 °C/35 %X-CUBE/SCHOOLAIR-V-HE: Heat exchanger type 1 (design example 4-pipe version)

Supply air volume flow	m³/h	150	200	240	360
Cooling mode
Total cooling capacity	W	440	570	660	880
Room cooling capacity	W	384	493	561	715
Air temperature in the appliance	°C	26.9	27	27.1	27.3
Supply air temperature	°C	18	18.3	18.7	19.8
Condensate	g/h	0	0	0	0
Chilled water volume	l/h	136	190	200	200
Water inlet temperature	°C	16	16	16	16
Water outlet temperature	°C	18.8	18.6	18.8	19.8
Pressure loss, water side	kPa	9.1	16.4	17.9	17.9
Heating mode
Total heating capacity	W	1100	1600	1910	2580
Room heating capacity	W	825	1183	1383	1654
Air temperature in the appliance	°C	15.2	14.6	14.2	13.3
Supply air temperature	°C	34.6	35.7	35.3	32.2
Condensate quantity	g/h	570	729	855	1193
Hot water volume	l/h	60	120	165	200
Water inlet temperature	°C	50	50	50	50
Water outlet temperature	°C	34	38.4	39.9	38.8
Pressure loss, water side	kPa	1.3	4.3	7.6	10.7
Sound power level Lw,a	dB(A)	36	40	43	50
Sound pressure level including 8 dB room attenuation	dB(A)	28	32	35	42
Active power Pel	W	22	32	40	90

Air-side data cooling mode:

Temperature/relative humidity outdoor air: 32 °C/40 %
Temperature/relative humidity indoor air: 26 °C/50 %
Air-side data heating mode:
Temperature/relative humidity outdoor air: -12 °C/90 %
Temperature/relative humidity indoor air: 20 °C/35 %

- Ventilation unit with supply and extract air function, switchover option to secondary air mode (depending on air quality), with heat exchanger and heat recovery, for vertical installation in front of the sill

  SCHOOLAIR-V-HE-2/KR/600×2000×408/C3
  Under sill units for vertical installation on the façade Please note:
- Technical requirements of EU Regulation 1253/2014 for non-residential ventilation systems:
  - Fulfilled and documented as prescribedThe under sill ventilation unit variant described has an integrated ▪single-room control system for autonomous classroom operation. The supplied controllers contain the parameters of the standard control for operation according to our control description
    Ventilation unit for schools – vertical installation - master unit TROX X-CUBE/SCHOOLAIR-V-HE ventilation unit for vertical installation on the façade, with supply and extract air function, high heat recovery rate and option to switch to secondary air operation (depending on air quality), as well as heating functionIntegrated cross-counterflow heat recovery unit:
- High efficiency (heat recovery coefficient > 84 %)
- Including condensate collection and drainage
- Year-round utilisation of the heat recovery ventilation, even at very low temperatures:
- Reduces the available heating capacity on the water side
- A condensate drain is mandatory!
- Accessibility for maintenance purposes via separate service cover, without removing the unit coverfor vertical installation on the façade:
- Device casing made of galvanised sheet steel
- Cover and sheet metal connections: Connection via deep- drawn threads and stainless steel cross-head screws
- All necessary internal air ducts sealed and insulated by lining
- Internal electrical cable glands sealed
- Visible surfaces powder-coated (RAL 9005, jet black)
- Sound and heat-insulating lining on the suction and discharge side:
- With electromotive bypass:
  - Conducts a partial air volume flow past the heat recovery unit
  - Actuator 24 V (modulating) 0 - 100 %
  - Control via device-internal single-room control
- Motorised shut-off dampers in outdoor and exhaust air areas:
  - Normally closed in inactive state due to capacitor
  - Open-close actuator 230 V AC
  - Control via device-internal single-room control
  - Glass fibre-laminated mineral wool (building material ▪ class A, non-combustible according to DIN 4102, T1), abrasion-resistant up to air velocities of 20 m/s, orclosed-cell insulation material
- Meets the hygiene requirements of VDI 6022
- Height-adjustable levelling feet, +40 mm, to compensate for structural tolerancesAutomatic switchover to energy-efficient secondary air operation:
- Only in conjunction with air quality sensor
- Comparison of the setpoint values, e.g. with the actual values of the internal CO2-sensor
- If the indoor air quality is sufficient: switchover fromoutdoor air to secondary air operation
- Laterally arranged slotted hole bracket (slotted hole 6.5 × 13.5 mm) for fastening to the wall
- Connection to the on-site outdoor air and exhaust air openings in the façade:
  - With circumferential closed-cell sealing tape on the back of the device, 10 mm thick
  - The intake and discharge resistance of the on-site construction should not exceed 20 Pa at nominal volume flow rate
- Extract air removal at the top front of the device
- Use of 2 energy-saving EC centrifugal fans:
  - Supply and extract air fan classified in category SFP 0 (< 300 W/(m³/s)) in accordance with DIN EN 16798-3:2017-11
  - Electrical power consumption of the entire device at nominal flow rate 240 m³/h < 40 W
  - For dimensioning the connecting cable: Take the connected load of 592 VA into account
- Suitable for 4 speed levels:
  - 150, 200, nominal air volume 240 m³/h and boost stage with 360 m³/h
  - Control via device-internal single-room control
  - Volume flow rate stage correction possible subsequently by adjusting the control voltage
- Transfer point to the on-site electrical system:
  - Cable for on-site connection (not included in scope of supply)
  - Cable (L, N, PE) with wire end ferrules approx. 1 m out of the device
  - On-site electrical system: 1~ 230 V AC, 50 Hz, 3 ×1.5 mm2 (3 cores)
- Electrical components in the device:
  - Completely wired with FSL-CONTROL III control system
  - Control components integrated in the device
  - Connection option for bus communication (optional)
  - Connection of room control panel etc. after opening the customer area of the control system
- Transfer point to the on-site Instrumentation & Control system: Rail mount terminals type Wago 260
  - Optional integration into MCE/BACS via RS485 (Modbus/BACnet)
  - Master-slave connection RS485
  - Digital outputs DO
  - Digital inputs DI
  - Room control panel for recording the room temperature
- Transfer point to the on-site Instrumentation & Control system: Network connection RJ45
  - Optional integration into an on-site MCE/BACS via Ethernet (Modbus/BACnet)
  - RJ45 connection socket as a service access to the user interface of the room control panel
- Sensor for controlling the single-room control in the device:
  - Room air quality sensor CO2
  - Supply air temperature measurement downstream of
  - Must not restrict maintenance work on the front of the device, or the installation and removal of the appliance
  - Clear distance of approx. 30 mm between the front edge of the unit and the inner edge of the under-sill cladding
  - Accessibility must not be restricted by the on-site sill claddingDevices - dimensions and weight:the heat exchanger ▪
  - Outdoor air temperature measurement in the outdoor ▪air intakeWidth: approx. 600 mmHeight: approx. 2000 mm (without levelling feet, without mounting brackets)
- 2-pipe aluminium copper tube heat exchanger for air heating:
- Depth: approx. 408 mm (without façade sealings, without PG/M cable gland fittings)
  - Adjusted to the project-specific data ▪
  - Easily removable for cleaning (the on-site connection to the main pipework is crucial, not included in theWeight: approx. 90 kgTROX scope of delivery)
  - Draining and venting option per heating/cooling circuit (located on the right-hand side of the room)
- Cleaning the heat exchanger:
  - For easy removal: We recommend a connection to the on-site pipe network with flexible hoses (not included in the TROX scope of delivery)
  - Transfer points are the connections on the heat exchanger, ½" union nuts, flat seal
  - Easy-to-clean condensate drip tray with condensate drain (Ø 12 × 1 mm, made of galvanised sheet steel, powder-coated, RAL 9005)
- Outdoor air filter as Mini Pleat filter, class ePM1 (fine dust filter):
  - Filter class as per ISO 16890: ISO ePM1 65%
  - Eurovent-certified
  - Made from high-quality, wet-strength glass fibre paper
  - Folded tightly
  - Spacer:
    - Made from thermoplastic hot-melt adhesive
    - Even distance between the pleats (4 mm)
  - Frame made of moisture-resistant nonwoven material with pull-out tabs
  - Frame must not reduce the flow cross-section (filter size = flow cross-section)
  - Filter area ≥ 2.65 m²
- Extract air filter class G3 (coarse dust filter) as flat filter medium, filter class according to ISO 16890: ISO coarse 65%
  - Quick filter change
  - Tool-free opening of the filter insert thanks to user- friendly quarter-turn fasteners (after opening the on- site panelling)
  - Accessibility must not be restricted by the on-site sill cladding
  - Closed cell sealing tapes for sealing and adaptation to the outer casing are not included in the TROX supply package
- Under-sill cladding, to be provided by the client:
  - Must have perforations: for supply air intake, for extract air and secondary air intake
    FSL-CONTROL III controller
- Self-sufficient single-room control with simple time programmeOptional expansions for FSL-CONTROL III:
- Humidity sensor Return temperature sensor
- Electric valve actuators
- Pressure-independent control valves
- Integration into an on-site MCE/BACS via:
  - Modbus TCP
  - Modbus RTU
  - BACnet MS/TP
  - BACnet IPNote:The optional expansions are included in the delivery programme, but must be exchanged for the standard components in the following description.
- A room temperature signal is required
- Various room control panels and a room temperature sensor are available
- Associated optional equipment options - see Optional control accessories.
- We recommend commissioning by TROX.
  TROX control module FSL-CONTROL III (order code ...-C3- MA ...):
- Single room controller to be mounted on a DIN mounting rail in the device or in a separate control casing
- 42 digital or analogue inputs and outputs
- Integrated microSD card as flash memory medium
  - At least 2 GB storage space
  - Saves the trend data
  - Retrievable via RJ45 connection socket
- Factory-equipped with a software package for master units specially developed for decentralised ventilation units.
  - For simple master-slave communication via Modbus RTU
- Up to 10 slave devices can be connected to one master device
- Software:
  - 3 operating modes: Off, Automatic, Manual mode
  - 3 operating modes: Occupied, Unoccupied, Standby
  - 4 operating mode overrides: Boost, closed circuit, night purge, fan forced circuit
- Basic distinction between room temperature control by controlling heating and cooling valves or continuous bypass damper, or supply air temperature control for isothermal ventilation operation
- CO2-guided air quality control
- Heat recovery all year round
- Filter monitoring
- Configurable DI for on-site connection of presence detectors, window contacts, holiday switching, etc.
- Alarm messages: Type A (shutdowns) and Type B (notifications)
  Real time clock (RTC)
  Real Time Clock (RTC/real time clock) (order code ...-T/...):
- Component of the Master Software Package
- Enables a simple timer
  - 7 days with 10 switching points each
  - Automatic summer / winter time changeover
  - Temporal activation of night purge
    CO2 sensor
    CO2 sensor (order code…/C/…):
- Sensor arranged in the extract air intake of the master unit for recording the indoor air quality and corresponding control of the outdoor air flow rate
- Measurement via an NDIR sensor, which works on an infrared basis and compensates for any contamination by its 2-beam measurement principle
- Measuring range 0 – 2000 ppm
  Supply air temperature sensor
  Supply air temperature sensor (order code .../Z/...):
- Supply air temperature sensor with NTC thermistor, 10 kΩat 25 °C, measuring range -35 to 105 °C
- Very short response time due to perforated measuring tip
  Outdoor air temperature sensor
  Outdoor air temperature sensor (order code .../A/...):
  - Nominal width DN 15
  - Valve body with through-type design, external thread on both sides ½" flat sealing
  - For regulation and shut-off
  - Maximum operating fluid temperature 120 °C
    Optional control accessories
    Optional equipment to increase the comfort of the FSL- CONTROL III:TROX control panels for FSL-CONTROL IIIAt least one room temperature signal is required per room. There are several variants of TROX room control panels available, optionally with or without selector switch. Additionally, we offer a room temperature sensor RTF without control elements.Alternative on-site control panels must be connected via bus communication.
    Digital room control panels for surface mounting
    For operation and adjustment of the ventilation units.Digital room control panels for surface mounting: For operating and adjustment the ventilation units, type Schneider TM172DCLWT:
- Supplied as a loose accessory
- Connection to the master unit via Modbus serial line
- Project-specific software including setpoint value adjuster, various status displays, selector switch, CO2 traffic light indicator
- Touch-sensitive colour display 3.5" 320 × 240 pixels
- Sensor: NTC 10 kΩ
- Protection level: IP 20
- Dimensions (height × width × depth): 120 × 86 × 25 mm
- Weight: 340 g
- Colour: white
- Installation: Surface mounting or on a standard flush- mounted box.
- Power supply: 24 V DC (optionally with suitable switchingpower supply unit for flush-mounted installation)
- Outdoor air temperature sensor with NTC thermistor, 10 kΩ ▪at 25 °C, measuring range -35 to 105 °C ▪Power consumption: 3.2 VA/1.3 WOther design frames available on request at an extra
  Water side components
  Water-side components (Order code…/HV-R-…):
- 1 × thermoelectric valve actuator:
  - For opening and closing valves
  - With position indicator
  - Including plug-in connecting cable
  - Supply voltage: 24 V DC
  - Control voltage 0 - 10 V DC
  - Power consumption 1 W
  - Protection level: IP 54
- 1 × small straight-way valve ½" standard:
  - Pre-assembled (hand-tight)
  - PN 16
  - DN 10
  - Kvs 0.4 (alternatively 0.25, 0.63 or 1.0 m³/h - please let us know the required Kvs value)
  - Valve body with through-type design, external thread on both sides ½" flat sealing
  - Operating fluid temperature 1 – 110 °C
- 1 × Lockshield on both sides ½":
  - Pre-assembled (hand-tight)charge
    Control panels with selector switch for surface mounting Control panel with selector switch, type Thermokon, for surface mounting:
- Supplied as a loose accessory
- With room temperature sensor, setpoint adjuster, override button, LED and 3-stage selector switch, as well as Off and automatic mode
- Casing made of PVC0 pure white (RAL 9010)
- Mounting on 60 mm flush-mounted box or directly on the wall
- NTC thermistor as a sensor element, resistance 20 kΩ at25 °C
- Dimensions (width × height × depth): 84.5 × 84.5 × 25 mm,
- Operating temperature: -35 – 70 °C
  Control panels without selector switch for surface mounting Control panel without selector switch, type Thermokon, for surface mounting:
- Supplied as a loose accessory
- With mode display, push-button and setpoint adjustment,NTC 20 kΩ sensor
- Protection level: IP 20
- Dimensions (width × height × depth): 84.5 × 84.5 × 25 mm
  Room temperature sensor for surface mounting
  Room temperature sensor TROX RTF, for surface mounting:
- Supplied as a loose accessory
- Room sensor without control elements
- Measuring range: -35 – 70 °C
- Sensor NTC 10 kΩ
- Connection terminal: screw terminal, Ø = 1.5 mm²
- Protection level IP 20
- Installation: Surface mounting or on a 70 mm flush- mounted box
- Dimensions (width × height × depth): 85 × 85 × 30 mm
- ABS housing in RAL 9010
  Control panels without selector switch for flush mounting For manual operation of ventilation units Particularly suitable for design-orientated installations High-quality appearance Various switch programmes with matching design frames

  Control panel without selector switch, type Thermokon, for flush mounting, switch programme Berker S.1, polar white:
- Supplied as a loose accessory
- With mode display, push-button and setpoint adjustment,NTC 20 kΩ sensor
- Protection level: IP 20
  Control panel without selector switch, type Thermokon, for flush mounting, switch programme Berker Q.3, white:
- Supplied as a loose accessory
- With mode display, push-button and setpoint adjustment,NTC 20 kΩ sensor
- Protection level: IP 20
- Control panel without selector switch, type Thermokon, for flush mounting, switch programme Busch-Jäger future linear, white
- Supplied as a loose accessory
- With mode display, push-button and setpoint adjustment,NTC 20 kΩ sensor
- Protection level: IP 20Other switch programmes on request.
  - Control signal 3-point DC 0 - 10 V
  - Permissible operating fluid temperature 1 – 110 °C
    Pressure-independent control valve
    As an alternative to the small straight-way valve (standard):
- 1 × pressure-independent control valve
  - Pre-assembled (hand-tight)
  - With modulating Open/Close control in combination with an externally adjustable, dynamic volume flow controller
  - With full valve authority
  - Nominal width DN 10
  - Valve body with through-type design, external thread on both sides ½" flat sealing
  - Operating fluid temperature 0 – 120 °C
    Interface for integration into an on-site MCE/BACS: Modbus TCP interface including web server (order code .../ MT/...)
    For more convenience, we recommend integration into an on- site MCE/BACS or visualisation with X-TAIRMINAL. FSL- CONTROL III can be integrated into an on-site MCE/BACS via the Modbus TCP protocol. Additionally including web server for simplified configuration, commissioning and remote monitoring of the device. The MCE/BACS is not included in the supply package from TROX GmbH, only the interfaces listed above are available here.
- Modbus TCP interface (Ethernet)
  BACnet IP interface including web server (order code .../BI/...) For more convenience, we recommend integration into an on- site MCE/BACS. FSL-CONTROL III offers the option of being integrated into an on-site MCE/BACS via the BACnet IP protocol. Additionally including web server for simplified configuration, commissioning and remote monitoring of the device. The MCE/ BACS is not included in the supply package from TROX GmbH, only the interfaces listed above are available here.
- BACnet IP interface (Ethernet)
  Modbus RTU (order code .../MR/...)For more convenience, we recommend integration into an on- site MCE/BACS. FSL-CONTROL III offers the option of being integrated into an on-site MCE/BACS via Modbus RTU. The MCE/BACS is not included in the supply package from TROX GmbH, only the interfaces listed above are available here.▪
  Control panels without selector switch and without setpoint
  Modbus RTU interface (RS485)
  value adjuster for flush mounting
  Control panel without selector switch and without setpoint value adjuster, type Thermokon, for flush mounting, switch programme Gira E2:
- Supplied as a loose accessory
- With mode display and push-button, NTC 20 kΩ sensor
- Protection level: IP 20Other switch programmes on request.
  Electromotive valve actuator
  As an alternative to the thermoelectric actuator (standard):
- 1 × electromotive actuator for valve opening and closure
  - Supply voltage 24 V AC/DC
  - Power consumption max. 2.5 VABACnet MS/TP (order code .../BM/...)For more convenience, we recommend integration into an on- site MCE/BACS. FSL-CONTROL III offers the option of being integrated into an on-site MCE/BACS via BACnet MS/TP. The MCE/BACS is not included in the supply package from TROX GmbH, only the interfaces listed above are available here.
- BACnet MS/TP interface (RS485)
  Version as SLAVE DEVICE
  Identical to the MASTER DEVICE, as described above, but with the following deviations:
- No room air quality measurement in the unit
- No connection option for room control panels
- No outdoor temperature detection in the outdoor air
- No connection to on-site bus communication possible
- Pre-assembled self-sufficient control system for decentralised façade ventilation units in SLAVE construction
  Replacement filter set suitable for the appliance version
- Extract air filters cut to size as filter mats
- Outdoor air filter as Mini Pleat filterconnections, integration into the installed unit casing, connections of external components, connections of the MCE/BACS
- Check and, if necessary, adapt the project parameters pre- set in the factory with regard to customer-specific adaptations
- Functional test of the individual components (control elements, fans, valves, dampers, sensors)
- Checking the project-specific control functions, including
  Commissioning of the decentralised ventilation units
  Commissioning/parameter setting of the decentralised ventilation ▪units without integration into an on-site MCE/BACS
- Visual inspection of the on-site device connections, for compliance with the respective installation specifications from the installation and configuration instructions: air connections, heating/cooling connection, electrical connections, integration into the installed unit casing, connections of external components
- Check and, if necessary, adapt the project parameters pre-set in the factory with regard to customer-specific ▪adaptations
- Functional test of the individual components (control elements, fans, valves, dampers, sensors)
- Checking the project-specific control functions, including ▪any special functions such as potential-free switch contacts
- Documentation of the device settings and service work in aany special functions such as potential-free switch contacts Function test of the communication to the MCE/BACS in cooperation with the Instrumentation & Control provider:
- Checking that the on-site settings comply with the specifications in the installation and configuration instructions
- Input test of the data points sent on site
- Output test of the output data points
- Trial operation of the operating states that can be switched by the MCE/BACSDocumentation of the device settings and service work in a service report. The service report is to be signed by your company as the client or by an authorized representative of your companyInvoicing is based on a flat rate, derived from the number of devices and distance.service report. The service report must be signed by your company or a representative as the contracting authority.
- Invoicing is based on a flat rate, derived from the number of devices and distance.
  Commissioning/parameter setting of the decentralised ventilation units with integration into an on-site MCE/BACS
- Visual inspection of the on-site device connections, for compliance with the respective installation specifications from the installation and configuration instructions: air connections, heating/cooling connection, electricalInstruction in operation and maintenance
- One-time instruction for the operation of the decentralised ventilation units consisting of:
  - Description of the device functions on the device, already in operation
  - Description of the room control panel and the room conditions that can be influenced by it
  - Description of the maintenance work
- Invoicing on a flat-rate basis, carried out by the responsible sales representative

SCHOOLAIR-V

–

600 × 2000 × 408

–

0,40

–

R – 0,40

| |

18 19

1 Type
SA-V vertical decentralised ventilation unit X-CUBE/
SCHOOLAIR-V

2 Variant
HE high heat recovery rate

3 Heat exchanger
2 2-pipe
4 4-pipe

4 Heat exchanger construction

Specify construction (technical design with TROX EPF or TROX CONFIGURATOR)

5 Construction
KM with condensate drain

6 Nominal size [mm]
Width × height × depth
600 × 2000 × 408

7 Control system

OR without control system

C3 with FSL-CONTROL III

8 Control function

MA Master
SL Slave

9 Real time clock

Only with control function MA

No entry: without real time clock

T with real time clock

10 Interface
No entry: without interface
MT with Modbus TCP
MR with Modbus RTU (only with control function MA)
BI with BACnet IP

BM with BACnet MS/TP (only with control function MA)

11 Air quality sensor

Only with control function MA

No entry: without air quality sensor

C with CO2sensor
V with VOC sensor

12 Supply air temperature sensor
Z with supply air temperature sensor

Dimensions, Product details

Construction KR

Installation example

Installation and commissioning

Installation on the floor in front of the outside wall
Level adjustment using the 4 levelling feet (+40 mm)
4 lateral fixing brackets for screwing to the building structure
The outdoor air intake or exhaust air discharge takes place via 2 façade openings. The façade openings must be professionally provided by the client and ideally have a slope to the outside
Free cross-section of ventilation openings: 0.03 m² for each outdoor air opening and exhaust air opening, and 0.1 m² for each supply air opening and extract air opening
Weather protection of the outside and exhaust air opening must be provided by the client
Installation and creation of all connections must be done by the client. Fixing, connection and sealing material must be provided by the client.
The water flow and return connections are on the right-hand side of the device, when seen from the room
The client must ensure that the device can be drained and vented.
The electrical connection is on the left-hand side of the device, when seen from the room
For easy removal of the heat exchanger, we recommend connecting it to the on-site pipe network using flexible hoses
The under-sill cladding on the front of the device (provided by the client) must not restrict maintenance access or installation and removal of the unit.

Downloads

product information

Product data sheet SCHOOLAIR-V-HE

SA-V-HE_PD_2025_01_17_DE_en Product data sheet 640 KB pdf

certificates

Declaration of hygiene conformity Type SCHOOLAIR-V

X-CUBE-SCHOOLAIR-V-HV_HC_2023_12_12_DE_en Hygiene certificate 660 KB pdf
ErP-product information Schoolair-V-HE

X-CUBE-SCHOOLAIR-V-HE_ErP_2024_10_DE_en certificate 190 KB pdf

By clicking the button, you allow us to provide you with an excellent website experience and easy shopping processes. These cookies include ones that are necessary for the operation of the site and for the control of our services and applications, as well as ones that are used solely for statistical purposes, for convenience settings or to display personalized content. You can decide which categories you want to allow and you can adjust the data utilisation settings based on your individual requirements. Please note that, depending on the settings that you have selected, all functionalities of the page might not be available. You can change your selection at any time.

TECHNICALLY NECESSARY

These cookies are necessary for the proper functioning of our website and cannot be disabled. As a rule, these cookies are set only in response to actions taken by you, such as setting your privacy preferences or filling the shopping cart. In addition, security-relevant functionalities or support via a dedicated webchat are integrated, including all session cookies from TROX set after you log in as a customer. You can set your browser to block these cookies or notify you about them. As a result, however, some areas of the website might not function as intended.

STATISTICS AND WEBSITE ANALYSIS

These cookies make it possible to collect data for statistics and analysis so that TROX can measure the performance of the websites visited, identify technical problems and find starting points for optimisation. They may be set by us or by third parties whose services we use on our sites. Users also help to identify, for example, which pages are used most frequently or only rarely or how people navigate between web pages. All information used by third parties is aggregated and anonymised.

X-CUBE SCHOOLAIR-V-HE

SUPPLY AND EXTRACT AIR UNIT WITH SWITCHOVER OPTION TO SECONDARY AIR OPERATION, INCLUDING CROSS COUNTER FLOW HEAT RECOVERY UNIT AND HEAT EXCHANGER FOR VERTICAL INSTALLATION ON THE FACADE

Technical information

Function, Technical data, Quick sizing, Specification text, Order code

SCHOOLAIR-V-HE-2/KR/600×2000×408/C3

FSL-CONTROL III controller

TROX control module FSL-CONTROL III (order code ...-C3- MA ...):

Real time clock (RTC)

CO2 sensor

Supply air temperature sensor

Outdoor air temperature sensor

Optional control accessories

Digital room control panels for surface mounting

Water side components

Control panels with selector switch for surface mounting Control panel with selector switch, type Thermokon, for surface mounting:

Control panels without selector switch for surface mounting Control panel without selector switch, type Thermokon, for surface mounting:

Room temperature sensor for surface mounting

Control panels without selector switch for flush mounting For manual operation of ventilation units Particularly suitable for design-orientated installations High-quality appearance Various switch programmes with matching design frames

Pressure-independent control valve

Interface for integration into an on-site MCE/BACS: Modbus TCP interface including web server (order code .../ MT/...)

Control panels without selector switch and without setpoint

value adjuster for flush mounting

Electromotive valve actuator

Version as SLAVE DEVICE

Replacement filter set suitable for the appliance version

Commissioning of the decentralised ventilation units

Dimensions, Product details

Downloads

product information

Product data sheet SCHOOLAIR-V-HE

certificates

Declaration of hygiene conformity Type SCHOOLAIR-V

ErP-product information Schoolair-V-HE

TECHNICALLY NECESSARY

STATISTICS AND WEBSITE ANALYSIS

CONVENIENCE AND PERSONALISATION

FOR THE BEST TROX EXPERIENCE
