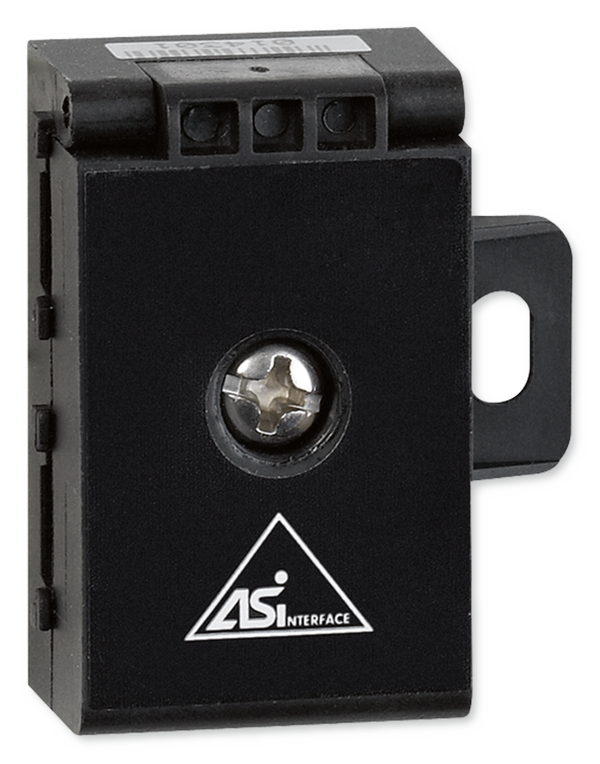

TNC-70581

Flat cable distributors allow for an inexpensive and quick wiring of AS-i installations. Distributors are available for one or two AS-i flat cables.

All products are of high quality and meet the requirements of AS-Interface

  • Asymmetrically shaped cable to ensure error-free connection (reverse voltage protection)
  • Easy wiring due to flat cable insulation displacement connectors ('click and go')
  • Protection level up to IP 67

Application

Application

  • Flat cable distributor to create a topology
  • Distributors may be connected even while a voltage is being applied
  • To distribute power from one to two cables

Technical information

  • Function
  • Technology
  • Specification text
  • Order code
AS-i installation TNC-70581 00134269_0

DescriptionTNC-70581
Electrical designAS-i/24 V
Max. current load per module8000 mA
Max. tightening torque1.65 Nm
Ambient temperature–25 to 75 °C
Protection levelIP 67
Casing materialsPA 6 GF35 Grivory
Weight0.025 kg
NotesFlat cable cannot terminate in the flat cable distributor. Use an end seal or heat shrink cap for sealing.
Accessories (optional)Flat cable end seal TNC-70413, heat shrink cap TNC-70113


Standard description (characteristics)

Flat cable distributors allow for an inexpensive and quick wiring of AS-i installations. Distributors are available for one or two AS-i flat cables.

  • Rating: AS-i/24 V
  • Casing materials: PA 6 GF35 Grivory
  • Ambient temperature: –25 to 75 C°
  • Protection level: IP 67
  • Make: TROX GmbH or equivalent
  • Type: TNC-70581

00136777_0


 Useful additions
TNC-A4000 Flat cable (100 m)
TNC-70381       Flat cable distributor
TNC-70413 End seals (10 pieces)
TNC-70113 Heat shrink caps (10 pieces)
TNC-70067 Cable clips for flat cables (100 pieces)
TNC-DP connector



Downloads

product information

  • AS-i installation set

    K 4 – 6.2 – 72 Technical Leaflet 550 KB pdf
