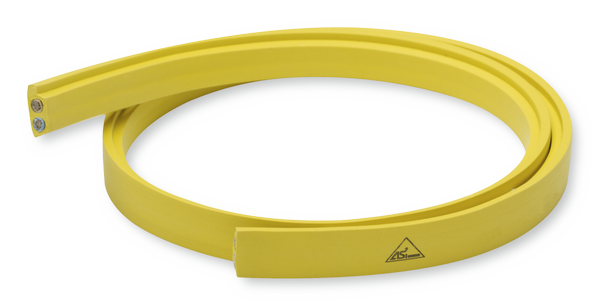

TNC-A4000

AS-i flat cable for use with flat cable insulation displacement connectors and Compact modules, available as a roll of 25 m, 50 m or 100 m

All products are of high quality and meet the requirements of AS-Interface

  • Asymmetrically shaped cable to ensure error-free connection (reverse voltage protection)
  • Easy wiring due to flat cable insulation displacement connectors ('click and go')
  • Protection level up to IP 67

Application

Application

  • AS-i flat cable for the transmission of data (communication) and voltage to the slaves
  • For use with flat cable connectors and mounting bases

Technical information

  • Function
  • Technology
  • Specification text
  • Order code
AS-i installation TNC-A4000 00136860_0

① bl ⊖
② bn ⊕

DescriptionTNC-A4000
Temperature range–40 to 85 °C
MaterialEPR (ethylene propylene); free of halogens
ColourTraffic yellow
Protection levelIP 67 in connection with flat cable mounting base
Wire diameter2 × 1.5 mm²
Wire coloursBrown (AS-i +), blue (AS-i –)
Special featuresReverse voltage protection due to special shape
Available lengths50 or 100 m


Standard description (characteristics)

AS-i flat cable for use with flat cable insulation displacement connectors and Compact modules, available as a roll of 50 m or 100 m

  • Supply voltage: 26.5 – 31.6 V DC (AS-i)
  • Electrical design: AS-i
  • Connection: 2 × 1.5 mm²
  • Ambient temperature: –40 to 85 C°
  • Protection level: IP 67
  • Make: TROX GmbH or equivalent
  • Type: TNC-A4000

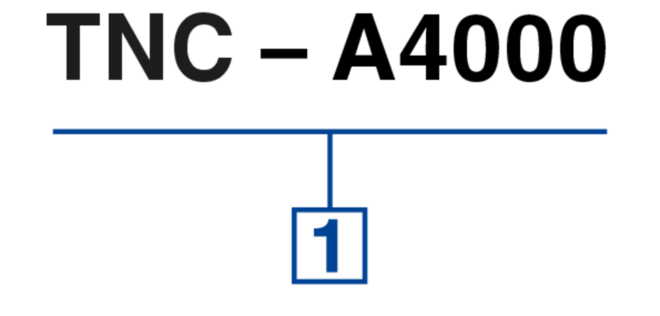

00136777_0


 Useful additions
TNC-A4000 Flat cable (100 m)
TNC-70381       Flat cable distributor

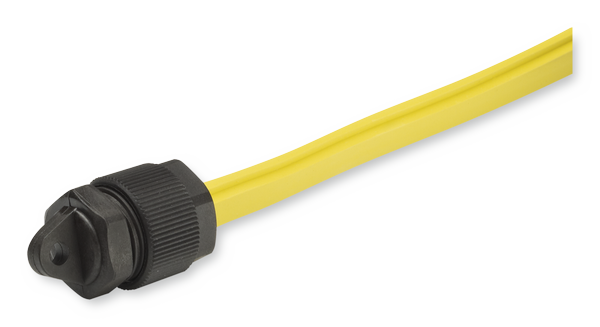

TNC-70413 End seals (10 pieces)
TNC-70113 Heat shrink caps (10 pieces)
TNC-70067 Cable clips for flat cables (100 pieces)
TNC-DP connector



Downloads

product information

  • AS-i installation set

    K 4 – 6.2 – 72 Technical Leaflet 550 KB pdf
