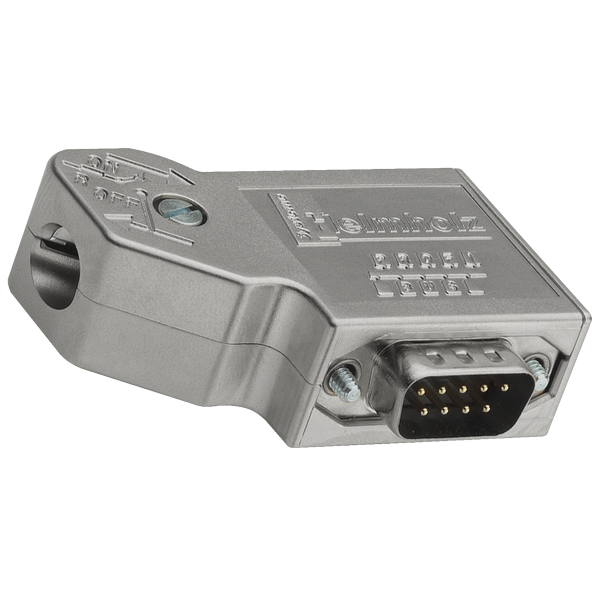

TNC-DP

One PROFIBUS DP connector per AS-i DP controller and DP master system (display).

All products are of high quality and meet the requirements of AS-Interface

  • Asymmetrically shaped cable to ensure error-free connection (reverse voltage protection)
  • Easy wiring due to flat cable insulation displacement connectors ('click and go')
  • Protection level up to IP 67

Application

Application

  • For the connection of a PROFIBUS controller or display to the PROFIBUS bus
  • Easy assembly
  • With terminal resistor

Technical information

  • Technology
  • Specification text
  • Order code

DescriptionTNC-DP connector
Supply voltage4.75 – 5.25 V DC (to be provided by the terminal unit)
Terminal resistorIntegral resistor can be set using the slide switch
Transfer rateMax. 12 Mbit/s
Cable routing35° angle
PROFIBUS componentSUB-D socket, 9-pole
PROFIBUS bus cable4 rail mount terminals for wires up to 1.0 mm²
Ambient temperature0 – 60 °C
Storage temperature–25 to 80 °C
Relative humidityMax. 75 % at 25 °C
Protection levelIP 20


Standard description (characteristics)

One PROFIBUS DP connector per AS-i DP controller and DP master system (display).

  • Supply voltage: 4.75 – 5.25 V DC (must be provided by the terminal unit)
  • Cable routing: 35° angle
  • Ambient temperature: 0 – 60 C°
  • Protection level: IP 20
  • Make: TROX GmbH or equivalent
  • Type: TNC-DP Stecker

00136777_0


 Useful additions
TNC-A4000 Flat cable (100 m)
TNC-70381       Flat cable distributor
TNC-70413 End seals (10 pieces)
TNC-70113 Heat shrink caps (10 pieces)
TNC-70067 Cable clips for flat cables (100 pieces)
TNC-DP connector



Downloads

product information

  • AS-i installation set

    K 4 – 6.2 – 72 Technical Leaflet 550 KB pdf
