AS-EM/C
00132746_0

AS-EM/C

COMMUNICATION INTERFACE BETWEEN A COMPONENT AND THE CONTROLLER

The module is used to connect the control system with the components

  • Integrated AS Interface slave

  • Monitoring of transmission function
  • With short circuit protection
  • Controller can be used to monitor the run time of the damper blade actuator


General information

Application

  • Universal module with plastic casing
  • Can be used to control 2 fire dampers with separate power supply
  • Can be used to control the explosion-proof actuator for a fire damper
  • Can be used to control the actuator for a KA-EU fire damper with blade opening actuator
  • Can be used to capture the damper blade positions CLOSED and OPEN, for example in fire dampers with conventional limit switches
  • Connection of up to four dampers with one limit switch each, or two dampers with two limit switches each
  • Can be used to capture signals from duct smoke detectors of Type RM-O-VS-D or RM-O-3-D
  • Integral AS-Interface slave
  • Monitoring of signal receipt
  • Voltage supply for actuators with separate 24 V or 230 V AC voltage supply
  • Cable connection with terminal strip

Order code

  • AS-EM/C The module is used to connect the control system with the components

Technical information

  • DIMENSIONS
  • TECHNICAL DATA
  • SPECIFICATION TEXT

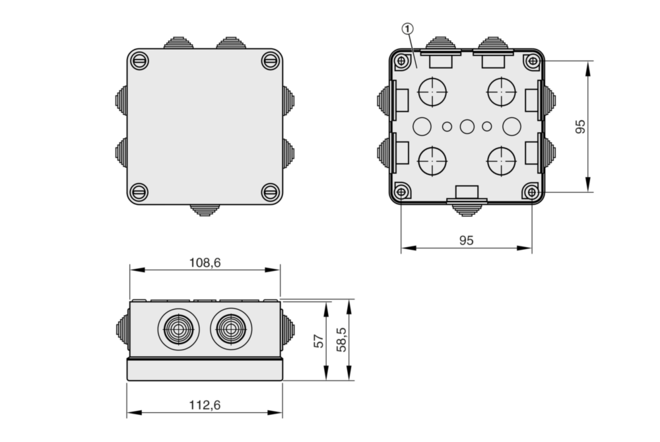

AS-i module AS-EM/C 00134251_0

① Seen from below

DescriptionAS-EM/C
Electrical design4 inputs/2 outputs
Output functionRelay
Supply voltage26.5 – 31.6 V DC
Current consumption< 100 mA
Inputs
SwitchingPNP
Sensor voltage supplyAS-i
Voltage range18 – 30 V DC
Max. current load (total for all inputs)100 mA
With short circuit protection NoNo
Switching level – high signal 1> 10 V
Input current high/low> 6/< 2 mA
Outputs
Galvanically isolatedYes
With short circuit protectionNo
WatchdogYes
Max. current load per output1500 mA
External voltage supplyYes
Voltage range10 – 240 V AC/24 V DC
Max. current load per module6000 mA
Status display
Switching stateLED yellow
OperationLED green
ErrorsLED red
Ambient temperature–5 – 50 °C
Protection levelIP 54
AS-i profileS-7.A.E
I/O configuration7 Hex
ID codeA.E Hex
EMCEN 50295; EN 50178
Casing material PP (polypropylene); flame retardant
Dimensions L × B × H110 × 110 × 58 mm
Data bitsData bit: D0; D1; D2; D3
Input functionIn1; In2; In3; In4
Output functionO1; O2
Connecting cable core identificationA+: AS-i +, A-: AS-i –, In+: Sensor supply voltage +24 V, In1 – In4: Switching input, sensors 1 – 4, N: common reference point


Standard description (characteristics)

  • Universal module with plastic casing
  • Can be used to control 2 fire dampers with separate power supply
  • Can be used to capture the damper blade positions CLOSED and OPEN, for example in fire dampers with conventional limit switches
  • Connection of up to four dampers with one limit switch each, or two dampers with two limit switches each
  • Can be used to capture signals from duct smoke detectors of Type RM-O-VS-D or RM-O-3-D
  • Integral AS-Interface slave
  • Monitoring of signal receipt
  • Voltage supply for actuators with separate 24 V or 230 V AC voltage supply
  • Cable connection with terminal strip
  • Ambient temperature: –5 – 50 °C
  • Protection level: IP54
  • Make: TROX GmbH or equivalent
  • Type: AS-EM/C

Downloads

product information

  • Product data sheet TROXNETCOM AS-i Modules

    AS-EM-C_PD_2024_05_08_DE_en Product data sheet  2 MB pdf

operation manuals

  • System manual TROXNETCOM AS-i System manual version 3.0

    AS-i_SH_2021_11_A00000079151_V3_GB_en System manual  13 MB pdf
