AS-EPR

COMMUNICATION INTERFACE BETWEEN CONNECTED COMPONENT AND CONTROLLER

The module is used to connect the control system with the components

  • Integrated AS Interface slave
  • Monitoring of transmission function
  • Short-circuit proof
  • Simple wiring using knife piercing technology ("click and go")
  • Runtime monitoring of the damper actuator in the controller

General information

Application
  • Connection of up to 4 limit switches: Damper blade position CLOSED or OPEN of 4 fire dampers, or positions CLOSED and OPEN of 2 fire dampers
  • Integrated AS Interface slave
  • Monitoring of transmission function
  • Supply voltage to the module via AS interface
  • Wiring of the limit switches with terminals; PG glands for cable penetration
  • Up to 30 m cable length between module and limit switch
  • Connection of the flat cable using piercing technology

Technical information

  • Technical data
  • SPECIFICATION TEXT
  • DIMENSIONS

Electrical design

4 inputs

Supply voltage

26.5 – 31.6 V DC

Current consumption

< 80 mA

Inputs

Switching

PNP

Sensor supply

AS-i

Voltage range

20 – 30 V DC

Max. current carrying capacity (total for all inputs)

160 mA

Short-circuit proof

yes

Switching level High/Low

> 10 V

Input current high/low

> 5/< 1 mA

Status display

Operation

LED green

Function

LED yellow

Ambient temperature

–25 to 85 °C

Protection level, IEC protection class

IP 67

AS-i profile

S 0.0

I/O configuration

0 Hex

ID code

0 Hex

EMC

EN 50081-2; EN 50082-2

Casing materials

PBTP (Pocan)

Dimensions L × B × H

102 × 45 × 70 mm

Assignment of data bits

Data bit I Assignment: D0 I – 1, D1 I – 2, D2 I – 3, D3 I – 4

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product Finder design program.


Specification text
  • Standard description (characteristics)
  • Module for capturing 4 end positions (volt-free)
  • Integrated AS Interface slave
  • Monitoring of transmission function
  • Flat cable connection
  • Power supply for the module via AS Interface
  • Brand: TROX GmbH or equivalent
  • Type: AS-EP

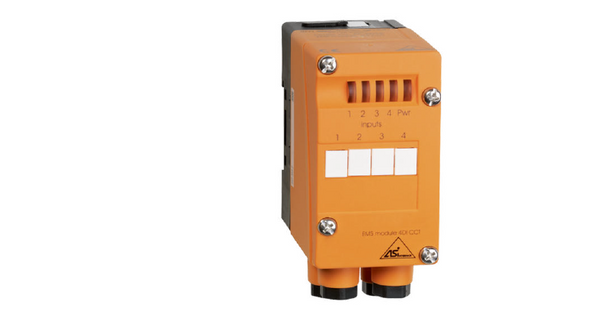

AS-i module AS-EP
AS-i module AS-EP
1 LED's
2 Field for text
AS-i module AS-EP
Connection of limit switches

Downloads

product information

  • Product data sheet AS-EPR

    AS-EPR_PD_2024_05_08_DE_en Product data sheet 1,3 MB pdf
